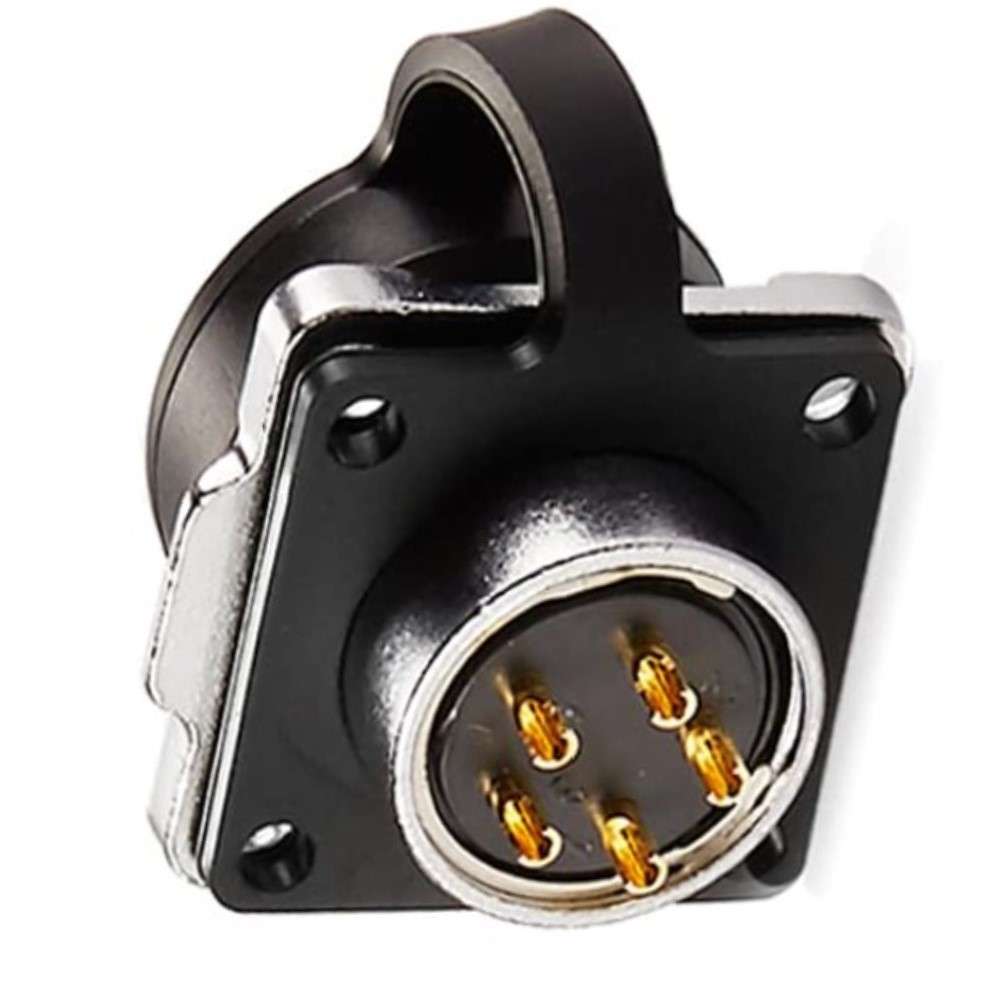

DH-20 power connector M20 5-pin female chassis square 500 V 12 A IP67 with barrier

€8.83 *
Content: 1 piece

Prices plus VAT plus shipping costs

  • DH-20-J05SX-03-401A
  • Tested to IP67 by CNLINKO
  • DH-20 Series Chassis Socket female with barrier
  • 7640383073821
5 pole chassis connector female max. 12 A / 500 V. Five contact sockets: 5 x Ø 1.80 mm. IP67... more
Product information "DH-20 power connector M20 5-pin female chassis square 500 V 12 A IP67 with barrier"

5 pole chassis connector female max. 12 A / 500 V. Five contact sockets: 5 x Ø 1.80 mm.
IP67 chassis socket as panel mounting version in corrosion-resistant metal housing in the DH series with the size 20.
The cable connection size is 1 mm (AWG 18) to 1.5 mm (AWG 16)
The plug can be assembled via solder connection with the cable.
The robust panel socket for voltage transmission in industrial environments with a width of 30 mm.
The DH series uses the unique spring design, a standard slot,
made of alloy material, a continuous fixing method in the outer seal and a new appearance,
that meets the requirements of a high quality application.
The connector is waterproof and dustproof according to IP67 protection class.

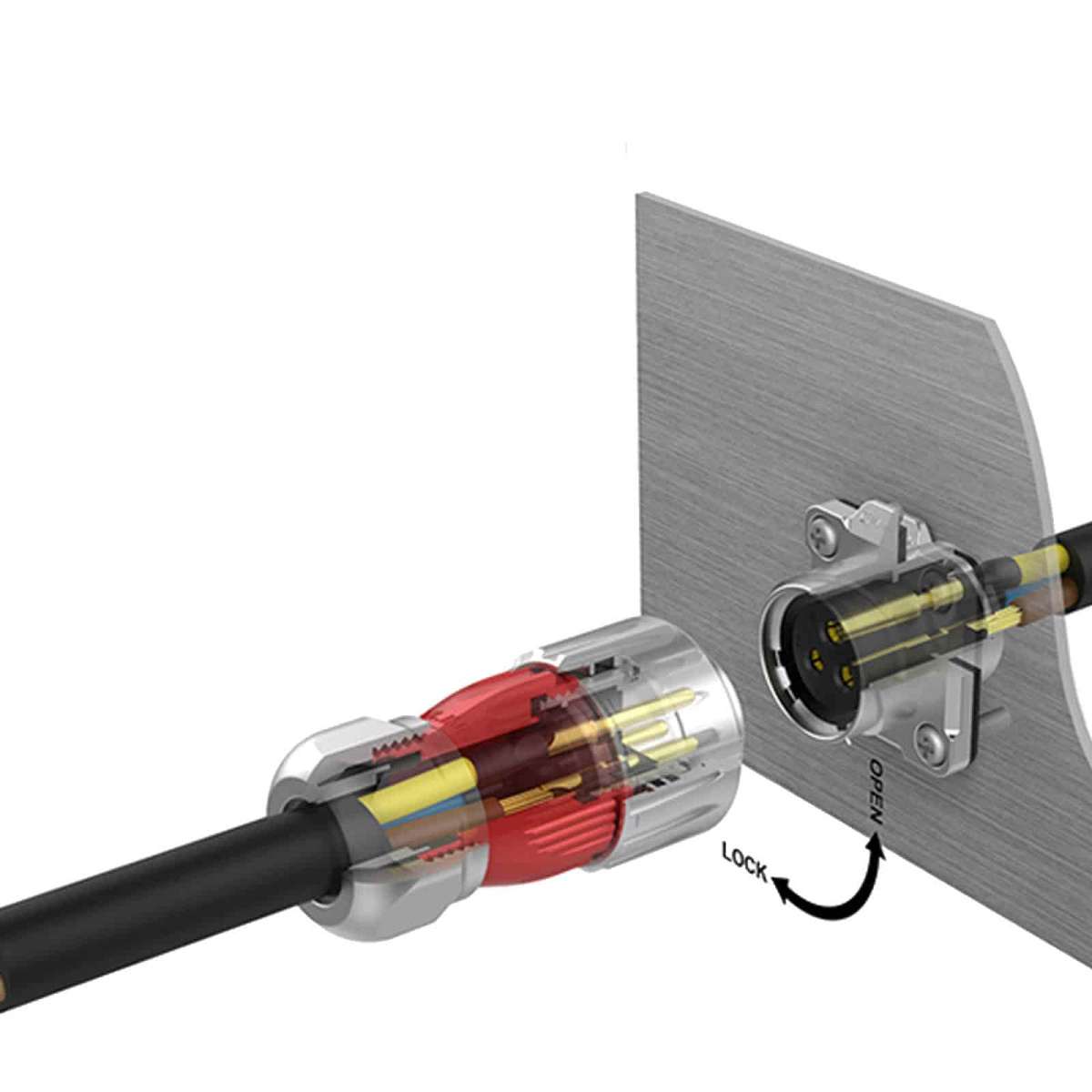

The fast bayonet connection ensures a secure connection and protects against data and power interruption.
The maximum rated power for the mains plug is max. 12 amps.
The max. Operating voltage from the chassis socket is rated at 500 volts.
The plugs have a color coding system for a quick identification of the line.
The connectors with the red aluminum housing are designed for power transmission.
The connectors are temperature and pressure resistant.

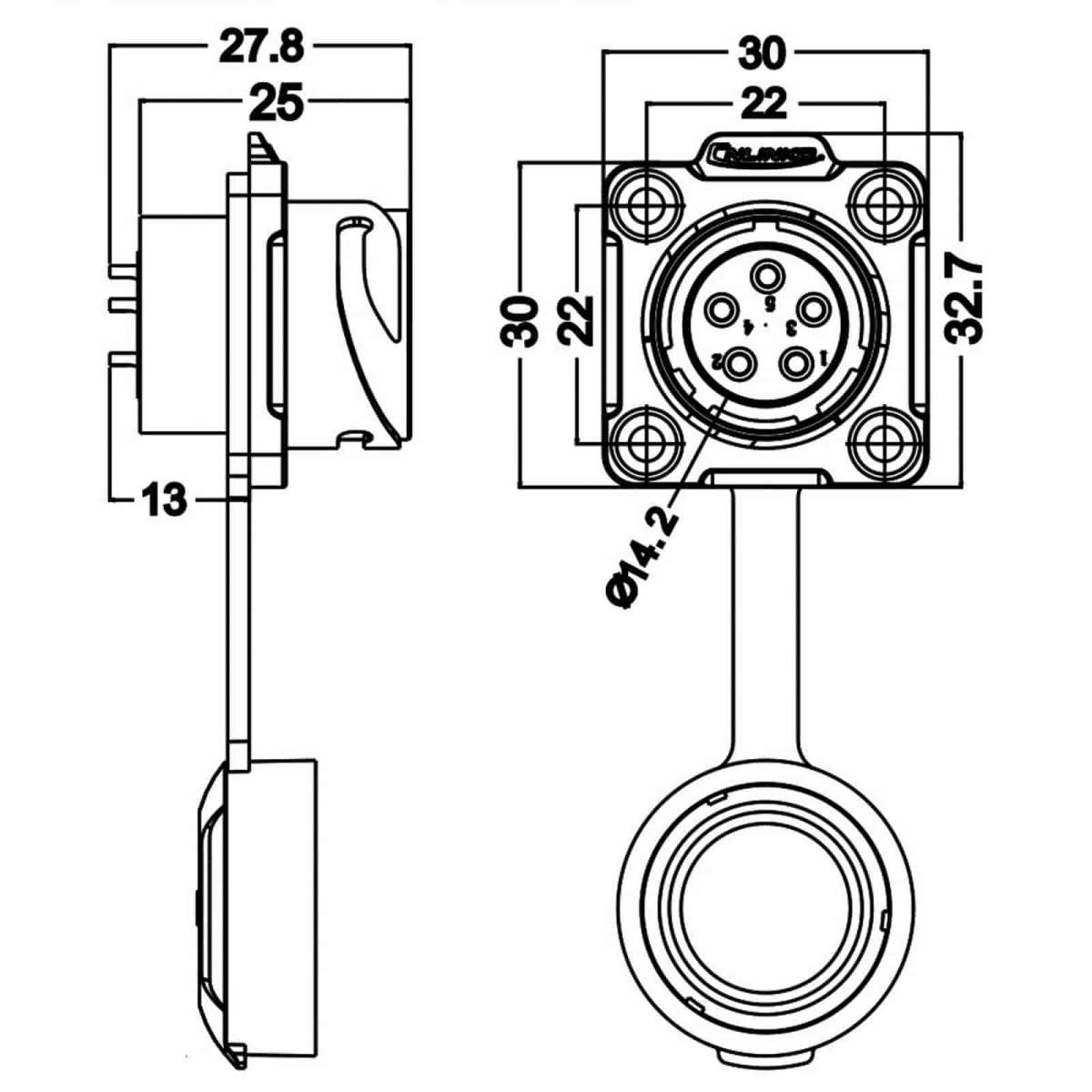

Depth: 30.5 mm
Width: 30 mm
Height: 32.7 mm

CNLINKO-Logo-1600-x-500

Brand: CNLINKO
Series: DH-Serie, DH-20
Version (Plug / Chassis): Chassis version with barriers
Connector type: Multicore
Connection mode: Quick bayonet lock
Number of contacts: 5
Contact diameter in mm: 5 x Ø 1.80 mm
Gender (M / F): Female connector
Connector housing color: Nickel
Cable diameter min. in mm: Ø 7 mm
Cable diameter max. in mm: Ø 9 mm
Cable connection size min. in mm: Ø 1.0 mm
Cable connection size max. in mm: Ø 1.5 mm
Cable connection size min. in AWG: AWG 18
Cable connection size max. in AWG: AWG 16
Wiring mode: Solder contact

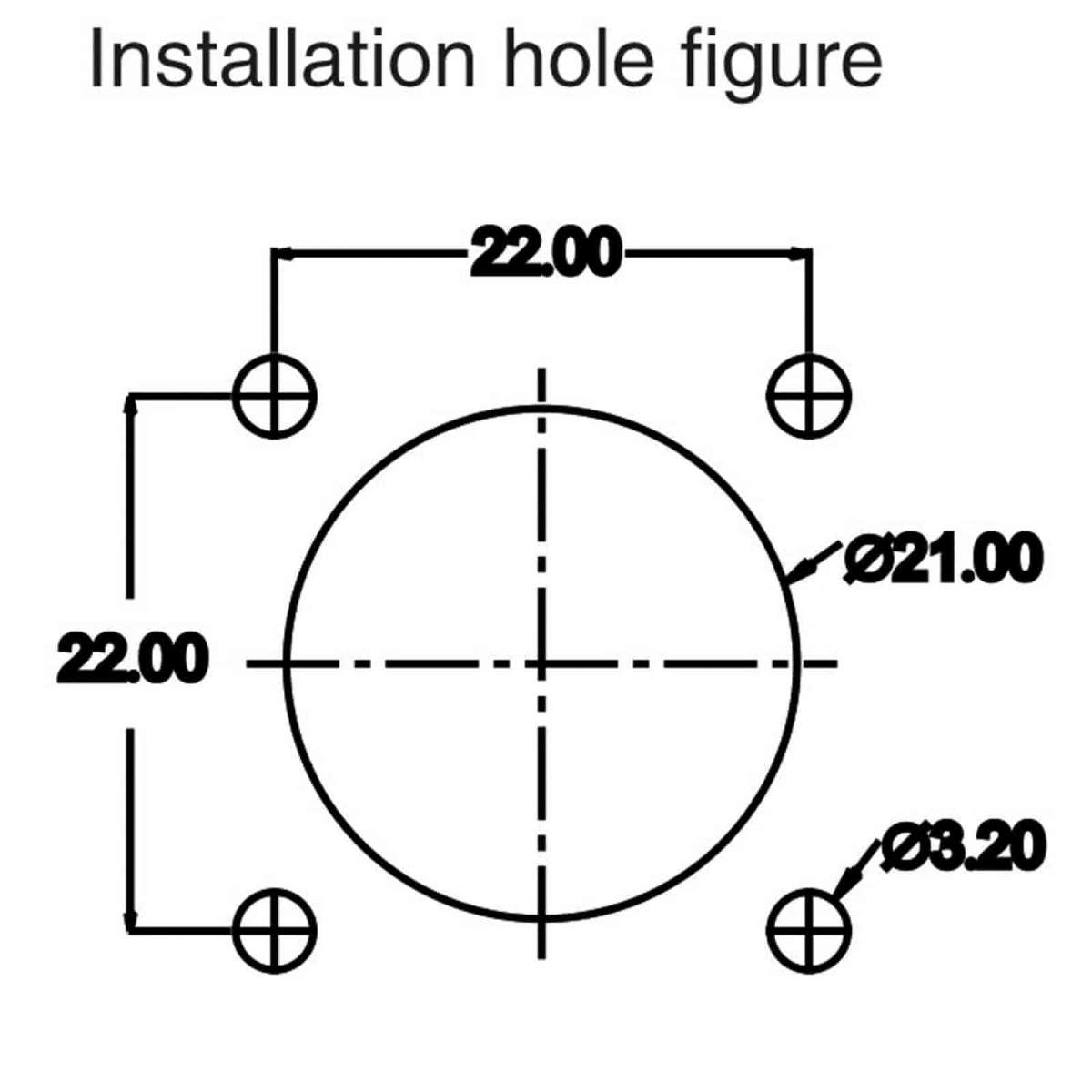

Installation diameter in mm: Ø 21.00 mm
Installation fixing height x width in mm: 22.00 mm x 22.00 mm
Number of mounting holes: 4
Mounting hole diameter mm: 3.2 mm
Insulation component: High performance plastics
Waterproof component: Silicagel
Working temperature minimum: -40°
Working temperature maximum: +80°
Plug cycle: 1700
Salt spray test: PH 6.2 - 7.2, NaCI 1.5% 48h
IP protection class according to EN60529 2000: IP67
Classification flammability of plastics: UL94-V0
ROHS according to EN62321-1: Yes
Country of origin: China
high voltage rating (VAC): 2500 V
Operating voltage (VAC.RMS): 500 V
max. Rated current (A): 12 A
Insulation resistance: 500 MΩ
Contact resistance: < 2.5 mΩ
POS packaging: No
Markets: Event Production, Industrial equipment, Industrial robot, Data box, Industry, Medical technology, Mechanical engineering, Devices construction, Plant construction, Multimedia installation, System integrator, Power supply, power storage
Certified standards: UL1977, CE EN60309-1, TÜV
